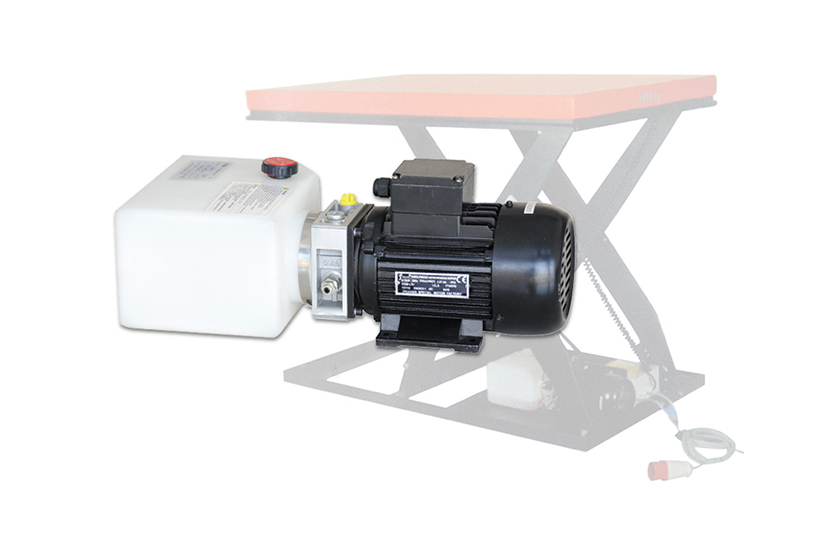

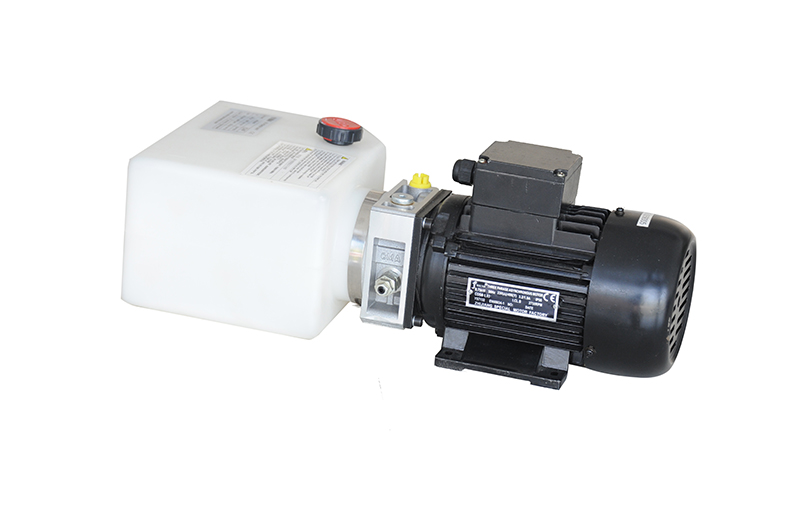

Mini AC Power Unit for Table Lift

Mini AC Power Unit for Table Lift

Specially designed for Table Lift which fixed parking,

Adopt CMA manifold, with the function of power lift and gravity lowering.

The fixed compensated valve maintaining the lowering in steady speed.

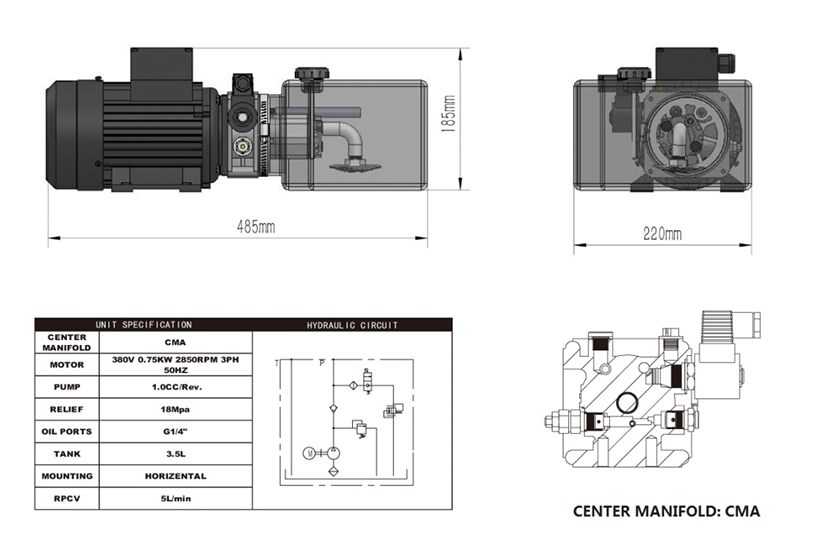

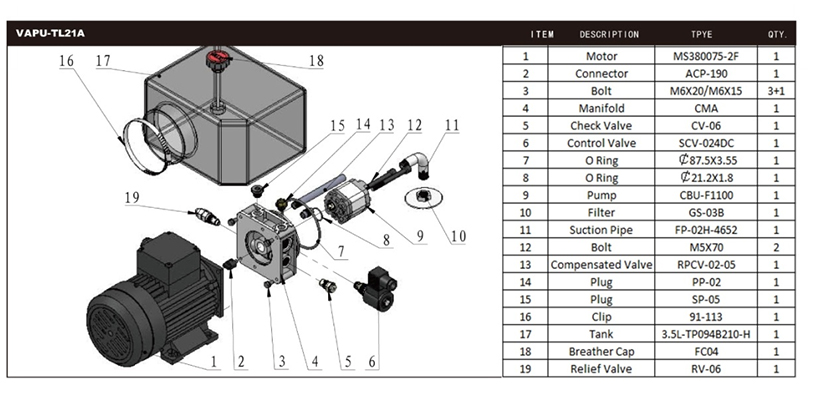

Technical Data and Drawing

Notes:

1. This power unit is of S3 duty, which can only work intermittently and repeatedly, i.e., 30 seconds on and 270 seconds off.

2. Make sure all the hydraulic parts cleaned before mounting the power unit.

3. VIBO products' warranty period is one year from delivery.

The product should be well protected from moisture and must be treated with care during storage, transportation and operation.
