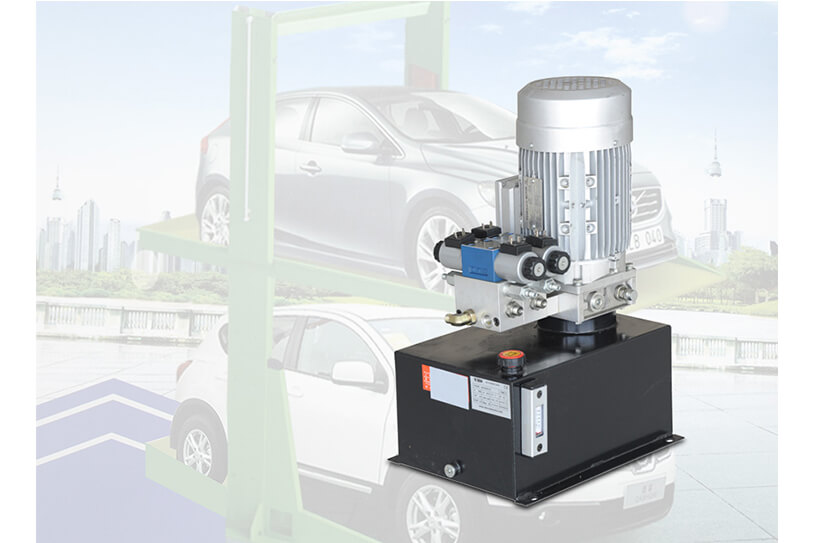

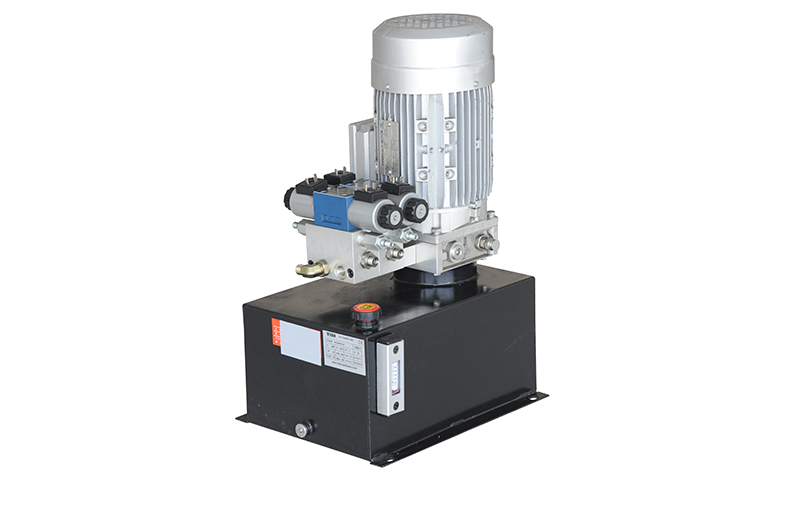

Hydraulic Automatic Parking System Power Unit

Hydraulic Automatic Parking System Power Unit

Specially designed for hydraulic Automatic Parking System, adopt CMC manifold, special circuit design.

Which make lower car in situation of no shift, still not affect top car raised and lowered.

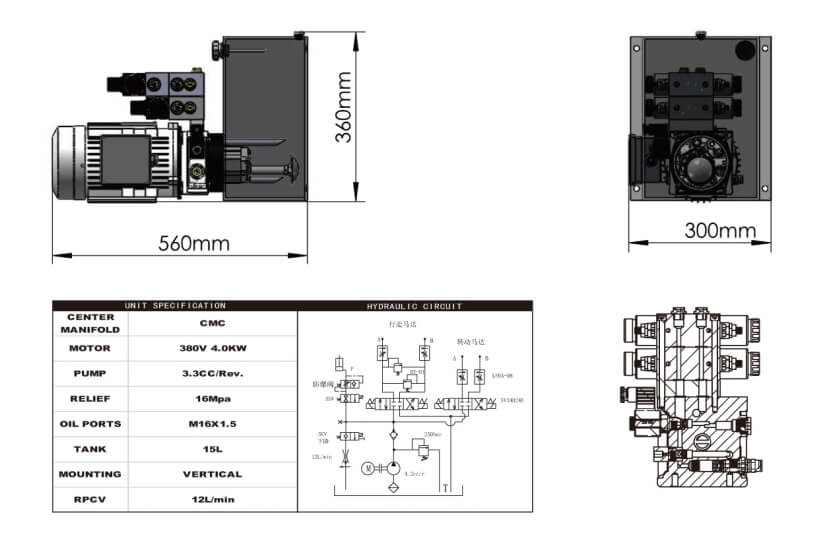

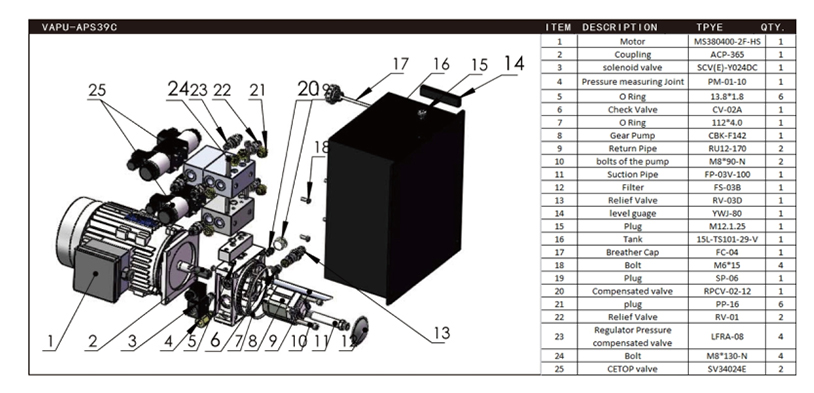

Technical Data and Drawing

Notes:

1. This power unit is of S3 duty, which can only work intermittently and repeatedly, i.e., 30 seconds on and 270 seconds off.

2. Make sure all the hydraulic parts cleaned before mounting the power unit.

3. VIBO products' warranty period is one year from delivery.

The product should be well protected from moisture and must be treated with care during storage, transportation and operation.
