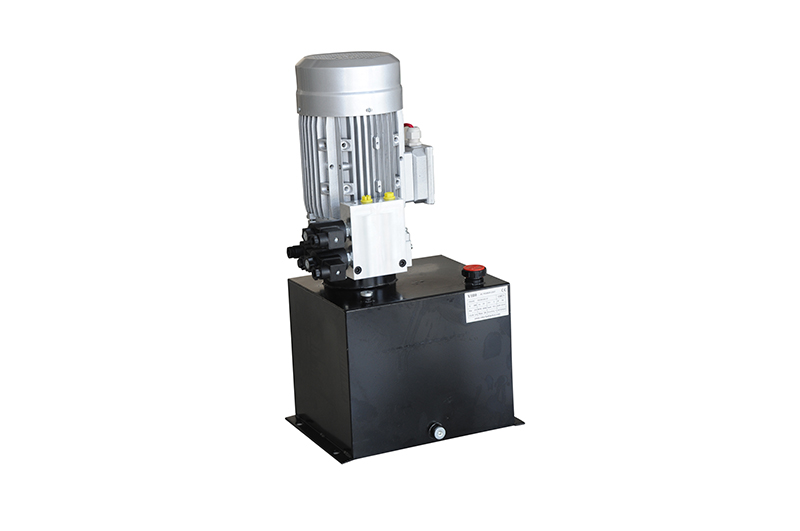

“M-C Type”Scissor Car Lift Power Unit

“M-C Type”Scissor Car Lift Power Unit

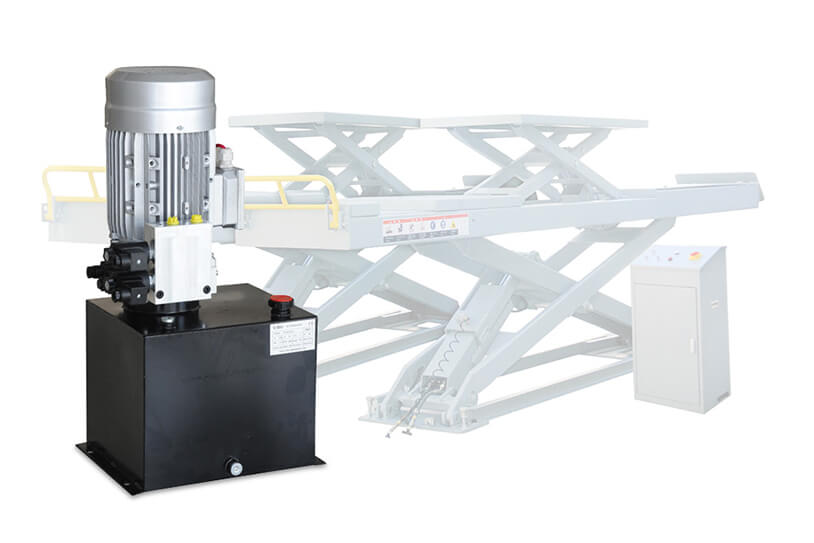

Specially designed for scissor car lift, adopt CMC manifold, with the function of power lift and gravity lowering, flow control valve or compensated valve control the lowering speed.

Two pieces double-way-check solenoid valves control two group single action cylinder.

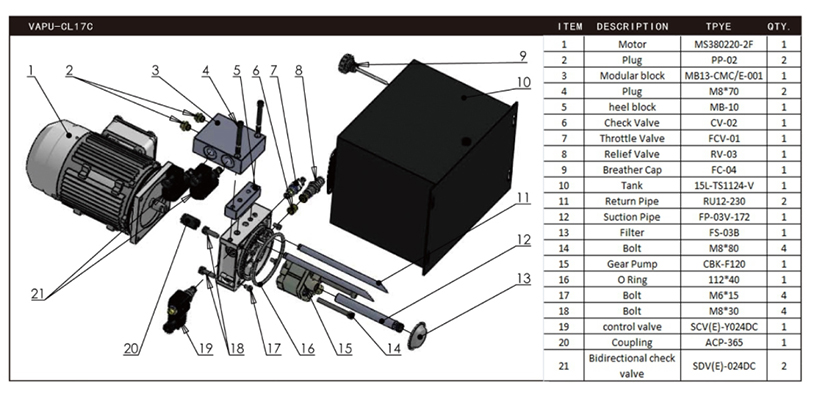

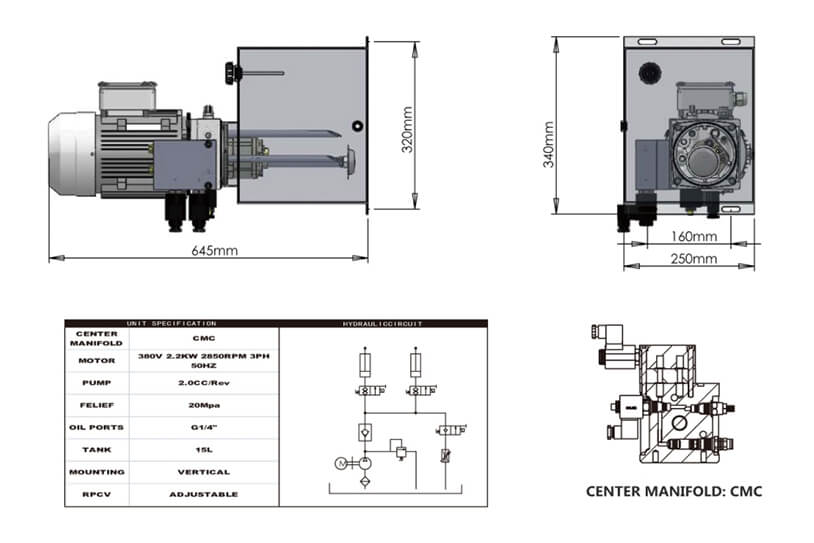

Technical Data and Drawing

Notes:

1. This power unit is of S3 duty, which can only work intermittently and repeatedly, i.e., 30 seconds on and 270 seconds off.

2. Make sure all the hydraulic parts cleaned before mounting the power unit.

3. VIBO products' warranty period is one year from delivery.

The product should be well protected from moisture and must be treated with care during storage, transportation and operation.
