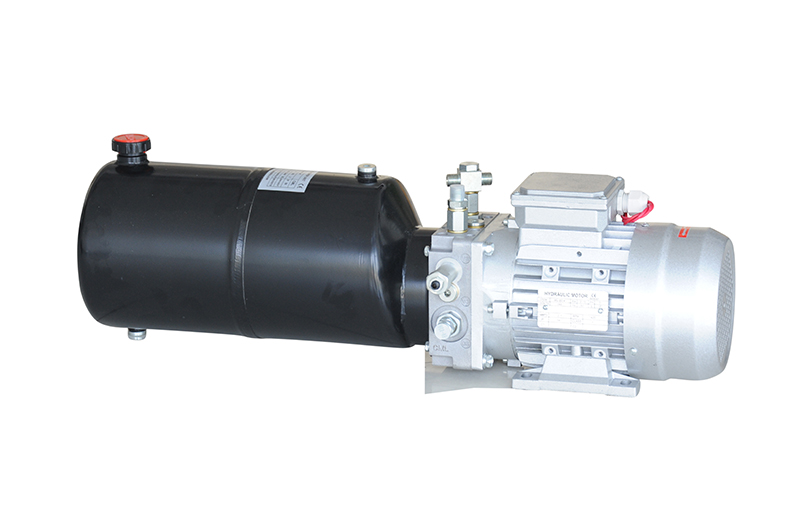

Dock Leveller Power Unit

Dock Leveller Power Unit

Specially designed for Dock leveler, adopt CML manifold, with the function of raising and lowering of ramp & lip, also the close function.

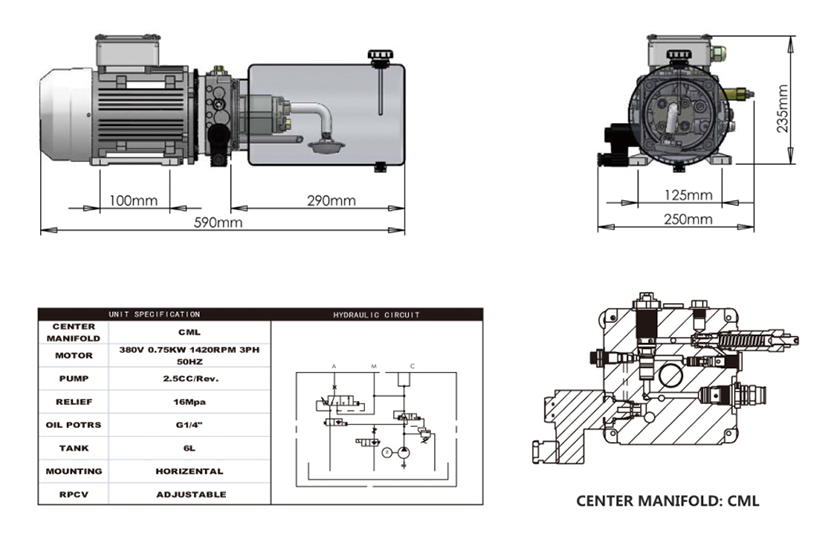

Technical Data and Drawing

Notes:

1. This power unit is of S3 duty, which can only work intermittently and repeatedly, i.e., 30 seconds on and 270 seconds off.

2. Make sure all the hydraulic parts cleaned before mounting the power unit.

3. VIBO products' warranty period is one year from delivery.

The product should be well protected from moisture and must be treated with care during storage, transportation and operation.
