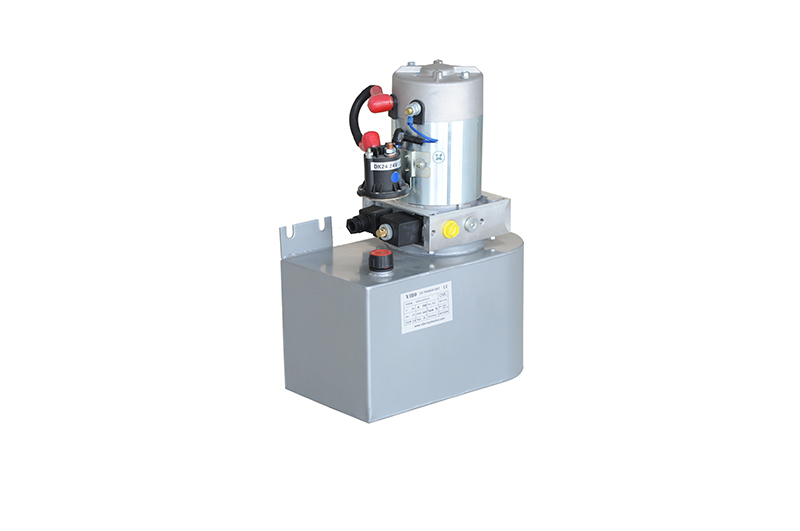

Electric Pallet Truck Power Unit

Electric Pallet Truck Power Unit

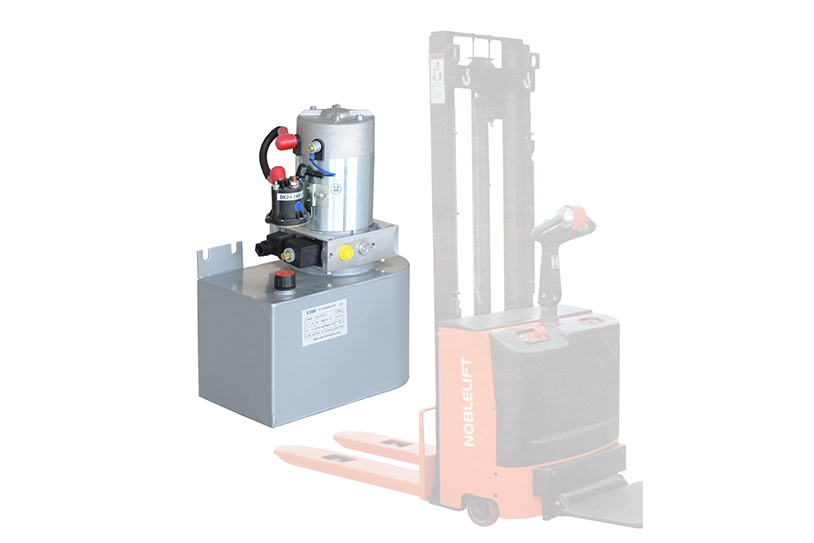

Specially designed for Electric pallet truck, suit various types of manifold,

with the function of power lift and gravity lowing. Solenoid valve control the lowing, the fixed compensated valve maintaining the lowering in steady speed.

Also can supply the hydraulic system lowering in two available speed, different flow compensated valve maintain different lowering speed.

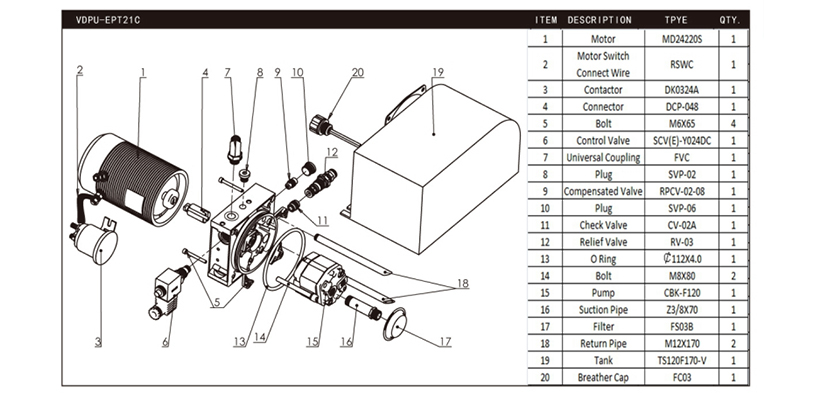

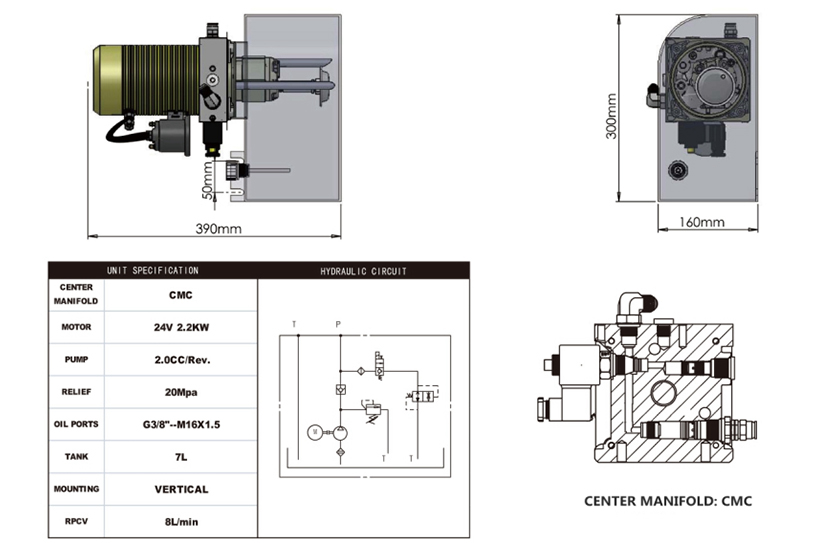

Technical Data and Drawing

Notes:

1. This power unit is of S3 duty, which can only work intermittently and repeatedly, i.e., 30 seconds on and 270 seconds off.

2. Make sure all the hydraulic parts cleaned before mounting the power unit.

3. VIBO products' warranty period is one year from delivery.

The product should be well protected from moisture and must be treated with care during storage, transportation and operation.
