Manual Electric Stacker Power Unit

Manual Electric Stacker Power Unit

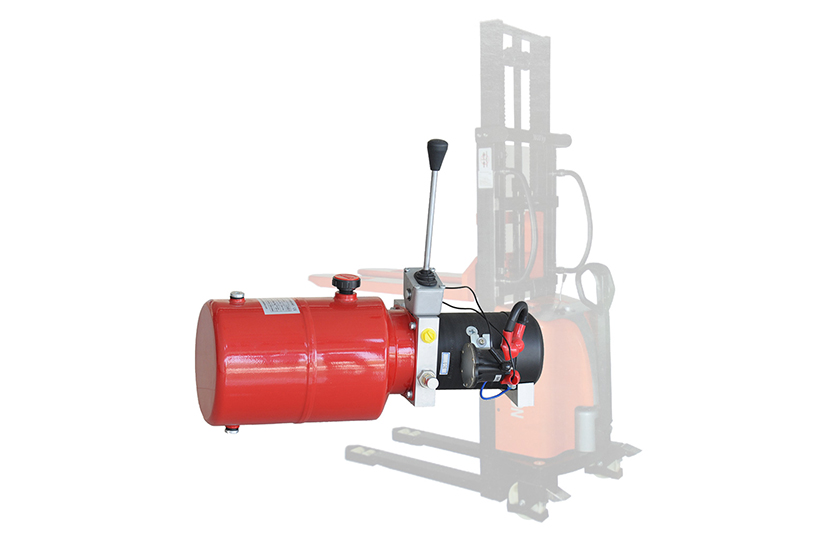

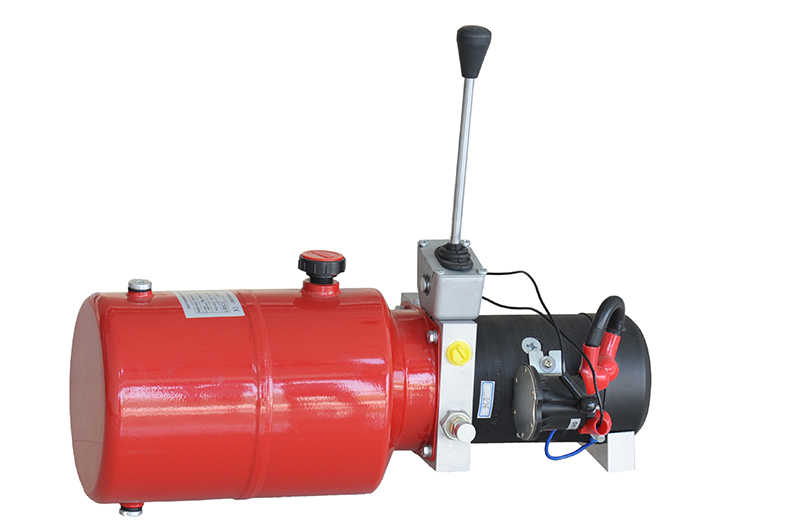

Specially designed for manual electric stacker. Adopt CMB1 or CMB2 manifold.

With the function of power lift and gravity lowering, MV-02 or MV-03 manual release valve control lowering, handle direction can be adjusted according to user needs. The fixed compensated valve maintaining the lowering in steady speed.

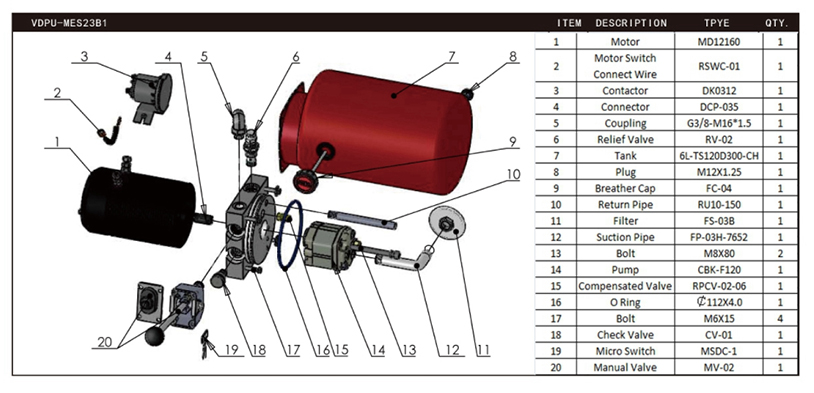

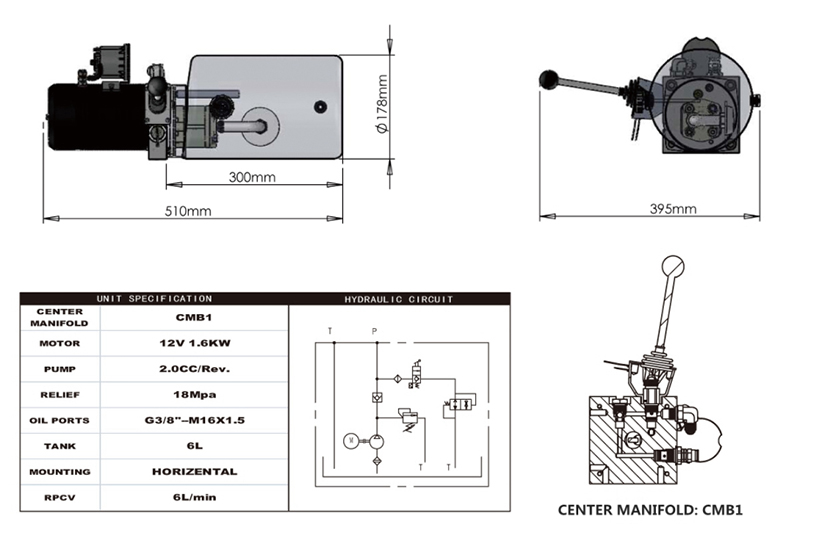

Technical Data and Drawing

Notes:

1. This power unit is of S3 duty, which can only work intermittently and repeatedly, i.e., 30 seconds on and 270 seconds off.

2. Make sure all the hydraulic parts cleaned before mounting the power unit.

3. VIBO products' warranty period is one year from delivery.

The product should be well protected from moisture and must be treated with care during storage, transportation and operation.
